Truflo Pumps is a worldwide ANSI and API centrifugal process pump manufacturer who has developed a wide variety of process pumps
Products & Services:
Our Brand
DAP Series
NSI B73.1 design. Flows to 1476m3/hr, head to 223m. Available material: DCI, WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C.

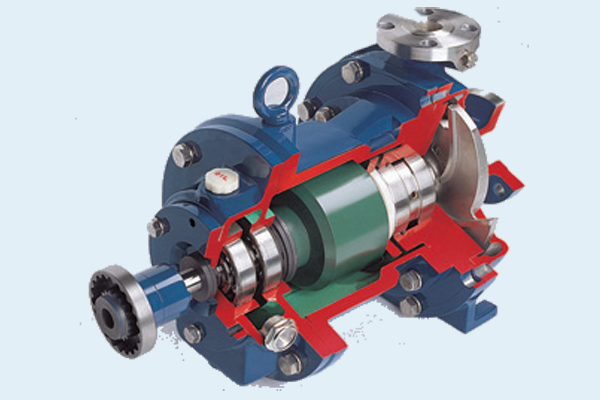

MAP Series
ANSI B73.3 design. Flows to 556m3/hr, head to 200m. Available material: WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C, Nickel.

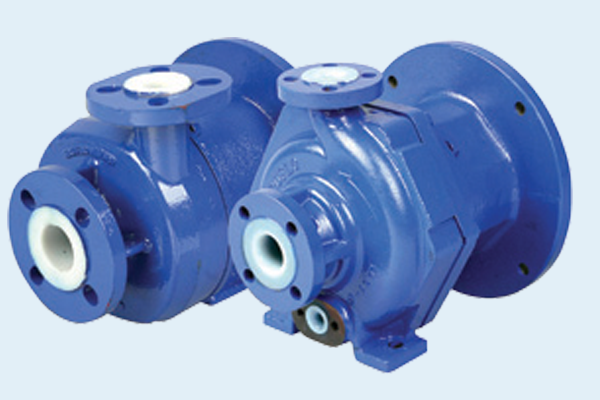

TNP Series
on-metallic magnetic drive pump. ETFE lined, ANSI B73.1 footprint, sealless design. Flows to 159m3/hr, head to 101m. Max. temp. 121oC.

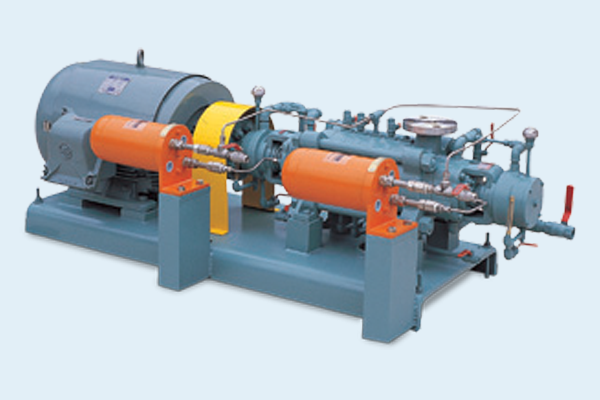

DMT Series
Multi-stage turbine pump. Flows to 110m3/hr, head to 388m. Temp. to 371oC. Available material: DCI, WCB, CF8, CF8M, CD4M, CN7M, Hastelloy B&C.
DSP Series
Self-priming pump. Flows to 280m3/hr, head to 130m. Max suction lift 6m. Avail- able in WCB, CF8, CF8M, CD4M, CN7M.

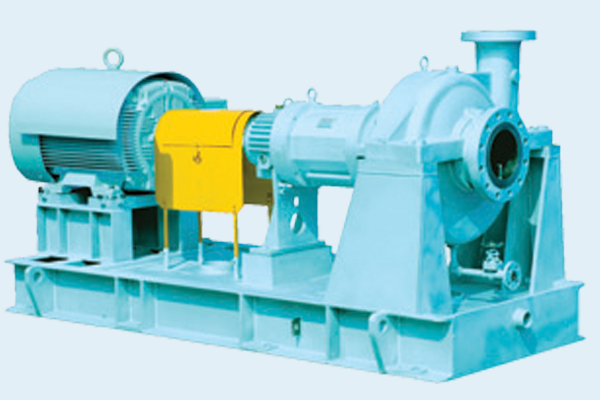

TMP Series
OH2, API 685 2nd Edition magnetic driven pump. Flows to 600m3/hr, head to 340m. Temp. to 275oC. Sm2Col7 magnets, dual containment can system fully enclosed.

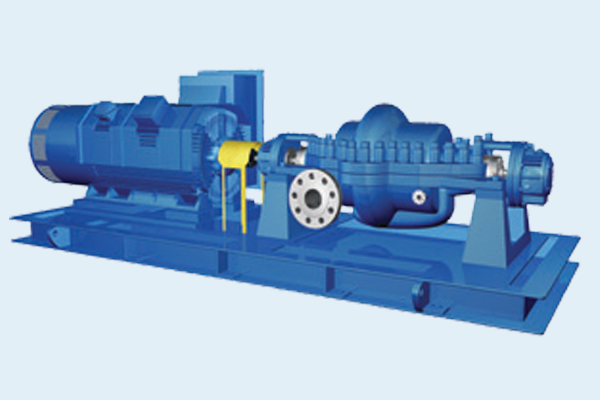

TSMP Series
BB3 axially split multi-stage pump, API 610 11th Edition. Flows to 999m3/hr, head to 1198m. Temp. to 205oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.

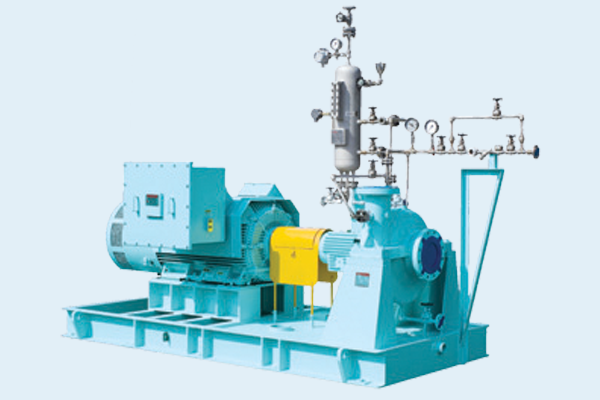

TSP Series
OH2 radially split, API 610, 11th Edition. 33 available sizes. Flows to 1900m3/hr, head to 341m. Temp. to 370oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
TMP Series
OH2, API 685 2nd Edition magnetic driven pump. Flows to 600m3/hr, head to 340m. Temp. to 275oC. Sm2Col7 magnets, dual containment can system fully enclosed.

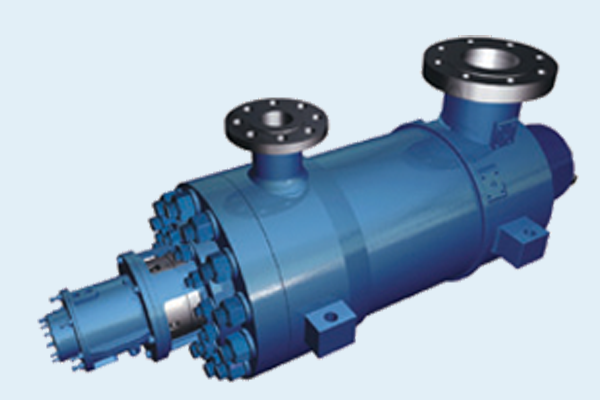

RSMP-B Series
BB5 barrel pump, API 610, 11th Edition. Multi- stage, flows to 1040m3/hr, head to 3000m. Temp to 425oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
TVCP Series
VS6 vertical can pump API 610, 11th Edition. Single or multistage. Flows to 1794m3/hr, head to 1198m. Temp to 399oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
TVSP Series
VS4 vertical sump pump, API 610, 11th Edition. Flows to 409m3/hr, head to 280m. Temp to 418oC. Available material: S1, S4, S5, S6, C6, A8, D1, D2.

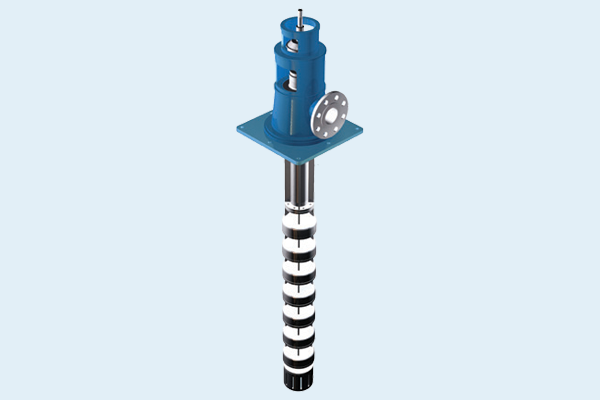

TVP Series
VS1 vertical turbine API 610, 11th Edition. Flows to 13989m3/hr, head to 280m. Temp. to 200oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
RSMP-B Series
BB5 barrel pump, API 610, 11th Edition. Multi- stage, flows to 1040m3/hr, head to 3000m. Temp to 425oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
TVCP Series
VS6 vertical can pump API 610, 11th Edition. Single or multistage. Flows to 1794m3/hr, head to 1198m. Temp to 399oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
TVSP Series
VS4 vertical sump pump, API 610, 11th Edition. Flows to 409m3/hr, head to 280m. Temp to 418oC. Available material: S1, S4, S5, S6, C6, A8, D1, D2.
TVP Series
VS1 vertical turbine API 610, 11th Edition. Flows to 13989m3/hr, head to 280m. Temp. to 200oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.

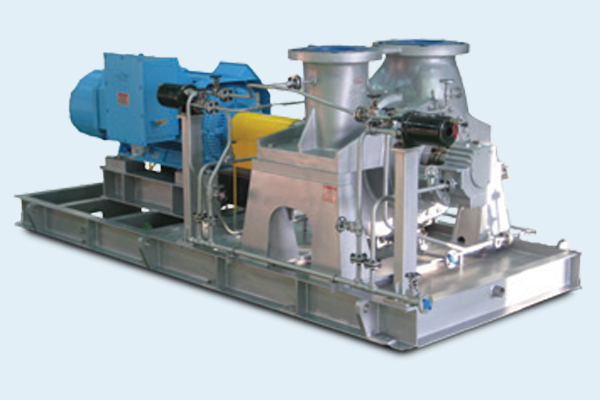

TDP Series
BB2 radially-split top suction, top discharge double suction, API 610 11th Edition. Flows to 3997m3/hr, head to 400m. Temp. to 399oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.

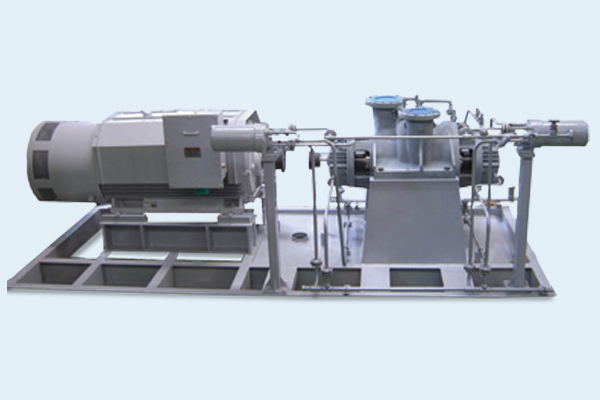

TDSP Series
BB2 radially-split top suction, top discharge double suction 2 stage API 610, 11th Edition. Flows to 2385m3/hr, head to 396m. Temp. to 399oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
TSTP Series
BB2 radially-split top suction, top discharge 2 stage, single suction 1st stage. API 610, 11th Edition. Flows to 2385m3/hr, head to 396m. Temp. to 399oC. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.

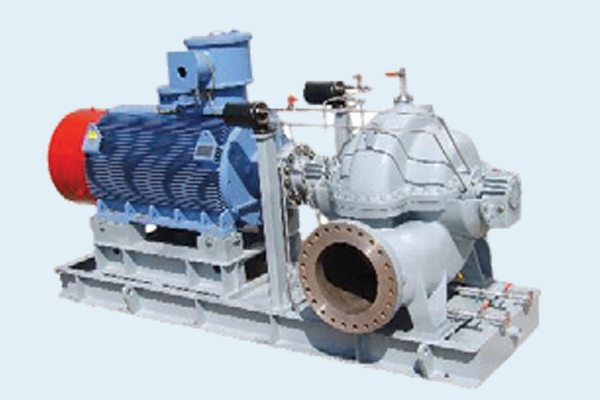

DSV Series
BB1 split-case double suction pump, API 610, 11th Edition. Flows to 12945m3/hr, head to 210m. Temp to 180oC. Replaceable wear rings, wide range of mechanical seal arrangements. Available material: S1, S4, S5, S6, S8, C6, A8, D1, D2.
